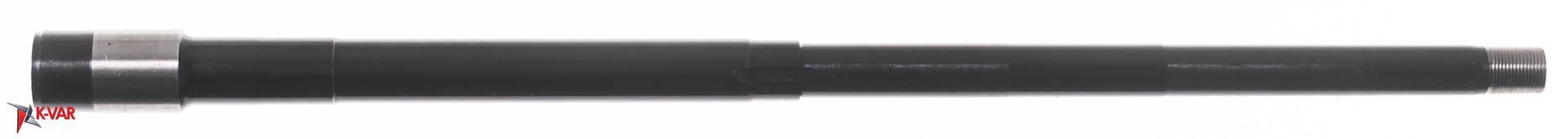

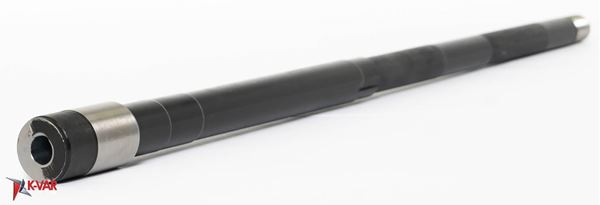

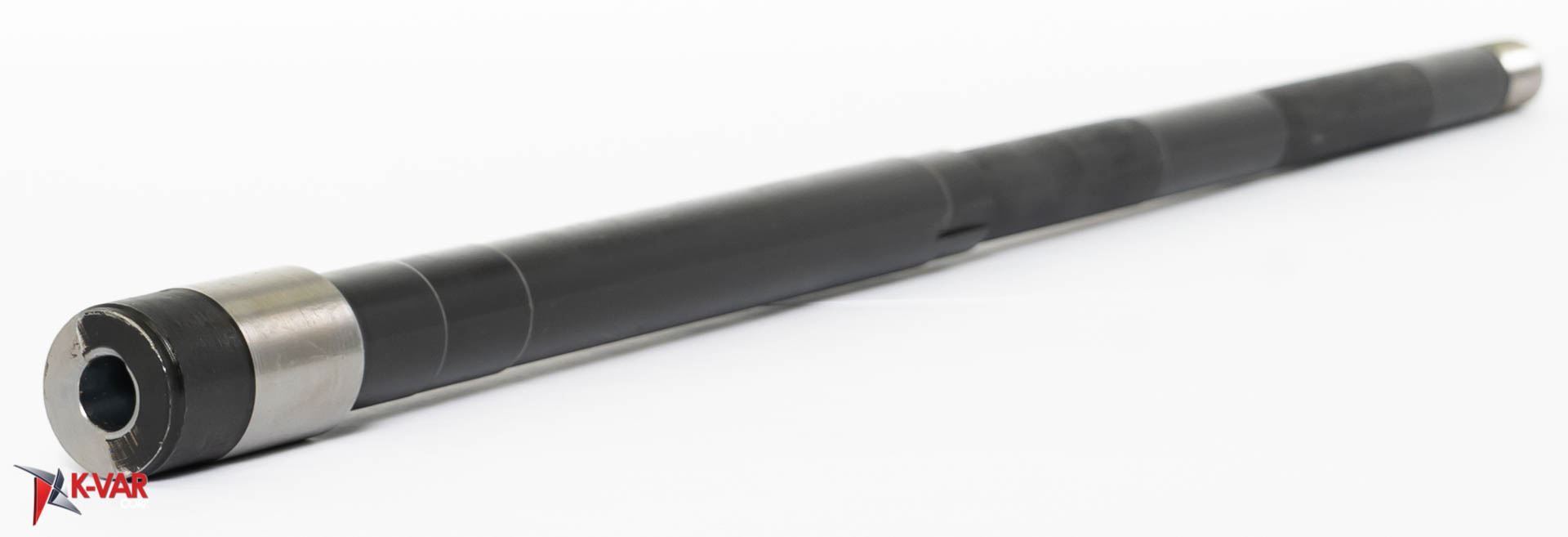

    5.56x45mm 16" 23 mm Trunnion

    $189.99
    $169.99
    See Reviews
    SKU: AK-223B
    Vendor: MSR
    Manufacturer: Arsenal
    Availability: In stock

    Bulgarian 5.56x45mm (.223 caliber) with 14x1mm left hand threads. New pre-ban 23mm barrel. Twist rate 1:7 in. Steyr technology forged chrome lined barrel.



    BARREL COMPONENTS (Sold Separately)
    Trunnion AK-556
    Rear Sight Block AK-336KI
    Gas Tube AK-080B
    Retainer Ring AK-338
    Front Sight Block AK-167B
    Sight/Gas Block Retainer Pin AK-025B (4)
    Barrel Retainer Pin AK-020
    Rear Sight Block Retainer Pin AK-257
    Muzzle Break AK-141B / AK-141US
    Gas Block AK-334



    NOTE: To work with an AK-74 parts kit, the barrel may need to be turned down by a gunsmith.

    #TAG# AK-223; AK-22; AK-2 #TAG#

    Bulgarian 5.56x45mm (.223 caliber) with 14x1mm left hand threads. New pre-ban 23mm barrel. Twist rate 1:7 in. Steyr technology forged chrome lined barrel.



    BARREL COMPONENTS (Sold Separately)
    Trunnion AK-556
    Rear Sight Block AK-336KI
    Gas Tube AK-080B
    Retainer Ring AK-338
    Front Sight Block AK-167B
    Sight/Gas Block Retainer Pin AK-025B (4)
    Barrel Retainer Pin AK-020
    Rear Sight Block Retainer Pin AK-257
    Muzzle Break AK-141B / AK-141US
    Gas Block AK-334



    NOTE: To work with an AK-74 parts kit, the barrel may need to be turned down by a gunsmith.

    #TAG# AK-223; AK-22; AK-2 #TAG#

    Products specifications
    Type AK
    Barrel Length 16
    Condition New
    Manufacturer Arsenal
    Model AK-223B
    AK Parts Barrels
    Caliber 223/5.56
    Caliber 223/5.56
    Write your own review
    • Bad
    • Excellent
    Existing reviews
    From: | Date: 10/23/2017 4:31 AM
    Was this review helpful? Yes No (2/2)
    Rear sight base fit
    The recommended rear sight base has a journal of 17.5 , but the barrel journal size on this barrel is 18.5, so you will need to turn down this portion of the barrel or find a rear sight base thats made for Milled AK's.
    AK-74 and AKM RSB are 17.5 where they mount on the barrel.
    From: Guest | Date: 10/19/2018 2:34 PM
    Was this review helpful? Yes No (12/1)
    great for the wbp 556 kit
    the wbp kit uses a 556 barrel but is all akm dimensions. the kvar 23mm 556 barrel i got was .9069 on the breech journal. there is also a little awesome feed ramp on the bottom of the chamber.

    the gas port is predrilled in the ak74 location, so you will need an ak74 90 degree gas block for it to work with the wbp 556 kit, or trim your gas tube down a little.

    the area from behind the hand guard retainer to the rear sight base journal will need to be turned down on a lathe to use the wbp parts.there is a workaround for this, use a bulgarian,polish,russian,hungarian 762 MILLED rear sight base.
    From: Guest | Date: 5/9/2020 3:59 AM
    Was this review helpful? Yes No (4/0)
