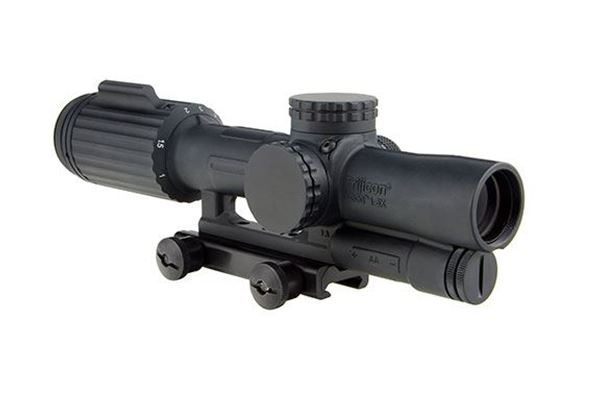

The Trijicon 1-6x24 VCOG® (Variable Combat Optical Gunsight) is a rugged variable powered riflescope that accommodates close quarter battle (CQB) and long distance marksmanship. It features superior glass quality and light gathering capabilities with zero distortion. The bullet drop compensating and ranging reticles allow for the shooter to quickly and accurately estimate range and apply the correct hold. The first focal plane reticle allows the subtensions and drops to remain true at any magnification. With a forged 7075-T6 aircraft-aluminum-alloy housing, the VCOG is an exceptionally durable and nearly indestructible sighting system. Robust enough for any application, the VCOG utilizes a single AA battery, commonly found across the globe and offers 6 adjustable brightness settings for the LED reticle. When powered by a lithium AA battery (like the one provided), it boasts a considerable battery life of 700 hours at setting 4 (constant on). An integrated dial fin allows easy rotation through the magnification range and a constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.).
Package Includes:
1 Thumb Screw Mount (TA51)
1 Lithium AA Battery
1 LENSPEN® (TA56)
1 Trijicon Logo Sticker (PR15)
1 Manual
1 Warranty Card
Specifications:-
Magnification: 1-6x
Objective Size (mm): 24
Bullet Drop Compensator: Yes
Weight (oz): 23.2 (w/o mount or battery)
Illumination Source: LED
Reticle Pattern: Horseshoe Dot / Crosshair
Day Reticle Color: Red
Night Reticle Color Red
Calibration .223 / 55 grain
Bindon Aiming Concept Yes
Eye Relief (in): 4 inch Constant
Exit Pupil (mm): 0.41 - 0.15 inch
Field of View (Degrees) 18.0 - 3.0
Field of View @ 100 yards (ft): 95 - 15.9
Adjustment @ 100 yards (clicks/in): 1 click @ 100m = 1/2 in.
Mount Comes With: TA51
Housing Material: Forged Aluminum
Batteries: 1 AA Alkaline or Lithium Battery
Battery Life: 700 hours continuous use at brightness setting 4 of 6
Dimensions: 10.05 x 2.51 x 2.73 inch
Focal Plane: First
Adjustment Range: Elevation: 90 MOA total travel; Windage: 90 MOA total travel; Per Revolution: 35 MOA
