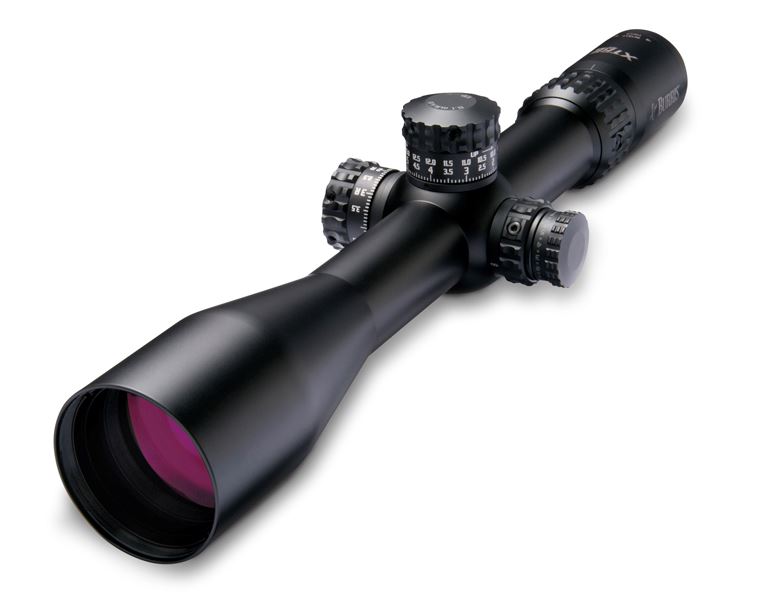

The 4-20x50 XTR II Riflescope from Burris Optical is designed for medium to long-distance use in the field or at the range. Its optical system uses index-matched Hi-Lume multicoated lenses with a very functional 50mm objective lens to produces views that are bright and clear with high contrast and true color representation, even in low-light- especially with the light-gathering capabilities of the large objective lens. The exposed tactical turrets make adjustments quick and easy, and with the Zero Click Stop system, there is no need to count clicks to return to zero after making temporary adjustments. To get you on-target, the turrets have 0.1 MRAD per click adjustment, with 8 MRAD of travel per rotation and a total range of 26 MRAD.
To match the turret's MRAD scale, is the G2B Mil-Dot reticle. This is a duplex crosshair-style with hashmarks set 1 MRAD apart and dots between. Developed for precision shooters, the reticle provides the tools to accurately range, measure distances, correct shot placement, and calculate wind hold-off.
Optical Performance
4-20x magnification
50mm objective lens
Index-matched, Hi-Lume multicoated lenses provide increased target resolution, contrast, and low-light performance
26-5.4' field of view at 100 yards
G2B Mil-Dot Reticle
MRAD based duplex crosshair-style reticle
Hashmarks set at 1 MRAD intervals with dots between on both axes
Hashmarks and dots can be used for ranging, distance calculations, and hold-off for wind
Reticle placed on the front (first) focal plane
Use and Handling
0.1 MRAD per click impact point correction
8 MRAD travel per revolution
26 MRAD windage and elevation adjustment
Exposed tactical turrets can be reset to zero after initial sighting
Zero Click Stop system: quickly return dials to zero position without counting clicks
Side parallax adjustment turret
Fast focus eyepiece with up to 3.5 - 4.25" eye relief
Construction Details
Aluminum housing with 34mm one-piece main-tube
Scratch and corrosion-resistant matte-black anodized finish
Nitrogen-filled, water and fogproof
All internal assemblies are triple-spring tensioned for shock-proof performance
Knurled turret and focus knobs for easy adjustments in cold and wet weather
Specifications:-
Magnification: 4-20x
Objective Lens Diameter: 50mm
Main-Tube Diameter: 34 mm
Reticle: G2B Mil-Dot, first (front) focal plane
Field of View: 26 - 5.4' @ 100 yd / 8.7 - 1.8 m @ 100 m
Parallax Correction: Side adjustment turret
Eye Relief: 3.5 - 4.25" (8.9 - 10.8 cm)
Exit Pupil Diameter: 12 - 2.5 mm
Impact Point Correction: .1 MRAD
Maximum Windage/Elevation Adjustment: 26 MRAD
Weatherproofing: Nitrogen-filled, water and fogproof
Length: 14.9"
Weight: 30.9 oz
