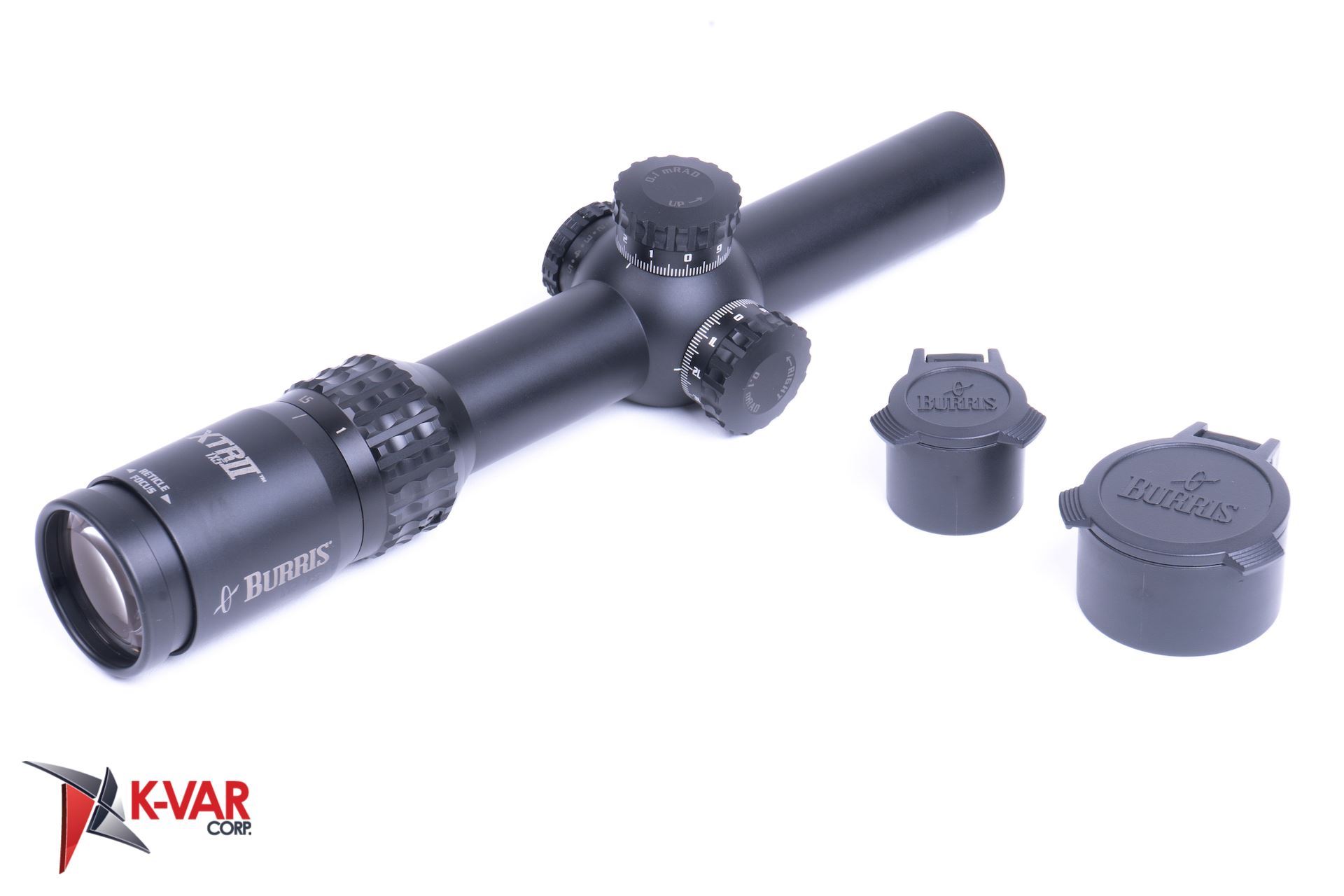

The 1-5x24 XTR II Riflescope from Burris Optics features Burris' Hi-Lume fully multicoated optics and high-transmission glass to provide you with bright images with high contrast, and true color rendition. The red illuminated ballistic CQ Mil reticle is designed with a 0.5 mil broken circle with a center dot for fast target acquisition and tracking. Hash marks on the horizontal and lower vertical axes aid in calculating range, holdover, and elevation adjustments. Eleven reticle intensity levels lets you tailor the reticle brightness to your preference and lighting conditions, with battery-saver modes between each level, to conserve power. The lowest settings are compatible with NVDs for tactical use.
The tactical turrets can be re-zeroed after the initial sighting, and feature Posi-Lock which locks the turret rings to keep the scope zeroed over time and prolonged use. Designed for durability, the aluminum housing has a matte-black anodized finish and is nitrogen-filled and o-ring sealed for water and fogproof performance.
Optical Performance
1-5x zoom magnification
24mm diameter objective lens
Hi-Lume fully multicoated optics reduces glare and increases light transmission for bright images with high contrast and true color rendition
Second Focal Plane reticle
Use and Handling
Illuminated red Ballistic CQ Mil reticle
0.5 mil wide broken circle with center dot, and horizontal and lower vertical tick marks for ranging, holdover, and elevation adjustment
11 brightness settings with 'power-saver' positions between each intensity
Lowest illumination level compatible with NVDs
Single-turn W/E knobs: A single turn runs through the entire adjustment range for fast correction and return-to-zero
Knurled turrets for non-slip grip on all conditions
Zero Click Stop turrets to quickly return to zero
Construction Details
30mm single-piece main-tube
Aluminum-alloy housing
Scratch and corrosion-resistant anodized finish
Matte-black to reduce light signature
Nitrogen-filled and o-ring sealed for water and fogproof performance
Posi-Lock system keeps scope zeroed after prolonged use
Specifications:-
Magnification: 1 - 5x
Objective Lens Diameter: 24mm
Main-Tube Diameter: 30 mm
Reticle: Ballistic CQ Mil, second focal plane
Field of View: 108.0 - 21.5' @ 100 yd (36.0 - 7.2 m @ 100 m)
Parallax Correction: None
Eye Relief: 3.5 - 4.25"
Exit Pupil Diameter: 12 - 4.8 mm
Impact Point Correction: 0.1 mil
Maximum Windage/Elevation Adjustment Windage: 4.6 MRAD
Elevation: 9.3 MRAD
Weatherproofing: Nitrogen filled, water and fogproof
Battery / Runtime: CR2032 lithium / Not specified by manufacturer
Length: 11.3"
Weight: 21.1 oz
